Product Range
22.5 mm  Ø PUSH BUTTON SWITCHES AND INDICATOR LIGHTS WITH METALLIC BODY (TYPE - PTR)

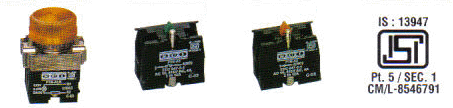

22.5mm Push Button Switches & Indicator Lights with metallic body are ISI marked as per IS: 13947 Part5/sec-1. Contact elements are of two types i.e. 1 NO or 1 NC with Front / Rare mounting. Indicator lights are available in Red, Green, Amber, Yellow & Blue.
DESCRIPTION INDICATOR LIGHT 1 No CONTACT ELEMENT 1 Nc CONTACT ELEMENT   CAT No. PTR-ALR PTR-AI PTR-A2
Flush Button, Projecting Button & Mushroom Button Actuators are spring return type while Mushroom Stayput Button Actuators is press to lock & turn to reset type. Flush, Projecting Button Actuators have colours Red, Green, Blue, Black, White, Yellow. Mushroom Button Actuator available in Red, Green, Black & Yellow colours while Mushroom Stayput Button Actuator is available in Red & Black Colours.
DESCRIPTION FLUSH BUTTON PROJECTING BUTTON MUSHROOM BUTTON MUSHROOM STAYPUT BUTTON CAT No. PTR-AS PTR-AU PTR-AM PTR-AMS

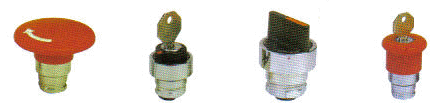

Mushroom jumbo Button Actuators with 60 mm dia head are available in spring return / press to lock & turn to reset with Cat No. PTR - AJB / PTR AJBS. Key Selector Switches are available in two / three lockable positions Cat No. PTR-A2K/ PTR A3K. Selector Switches are available in Maintained / Spring Return versions with Two / Three positions Cat No. PTR - A22 / PTR - A33 & PTR-A22S/ PTR-A33S respectively.
DESCRIPTION MUSHROOM JUMBO BUTTON KEY SELECTOR SWITCHES SELECTOR SPRING RETURN KEY EMERGENCY STOP CAT No. PTR-AJB PTR-A2K PTR-A33S PTR-APL

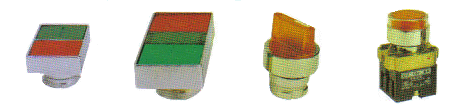

Luminous Twin Button Actuators, Luminous Flush Button (Spring return) Actuators & Luminous 2/3 position selector Actuators are available with/without series resistance suitable for 24V, 11OV, 220/230V DC/AC Supply. These are available with Lamp Holder & Bulb as well as with LED. The Switches are available in Red, Green, Yellow & Amber colours.
DESCRIPTION TWIN SPRING RETURN LUMINOUS TWIN BUTTON LUM. SELECTOR 2 POSITION LUMINOUS FLUSH BUTTON CAT No. PTR-ATB PTR-ATBLR PTR-A2SLATR PTR-ATR

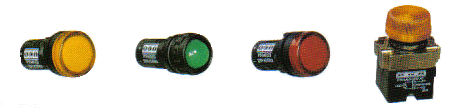

22.5 mm Ø  LED INDICATOR LIGHTS
22.5 mm Indicator Lights are available in glass filled Thermo-plastic housing with polycarbonate lens in two versions i.e. Barrel type with Cluster LED, Single LED, SM LED while the other are standard type with cluster LED. Available in 12V, 24V, 11OV, 220/230V DC/AC supply. Colours : Red, Green, Yellow, Amber, Blue, White & Clear.
DESCRIPTION LED (BARREL) SINGLE LED (BARREL) CLUSTER LED (BARREL) CLUSTER LED (STANDARD) CAT No. PTR-AFLED PTR-ASLED PTR-ACLED PTR-ATLED
22.5 mm  Ø PUSH BUTTON SWITCHES & INDICATOR LIGHTS WITH PLASTIC BODY (TYPE- 2SB)
2SB series Ø 22.5mm Push Buttons & luminous switches with plastic front ring & bezel in various configuration along with 1 NO/1NC/2N0/2NC/1NO+1NC contact element. Pilot lights in glass filled thermoplastic housing with poly carbonate lens suitable for 220V/230V, 1I0V, 48V, 24V DC/AC with/without series resistance. Ref. IS: 13947(part 5/sec-1) 1993.
DESCRIPTION SHROUDED BUTTON LENS ASSEMBLY LAMP HOLDER CAT No. 2SB - S 2SB - LA 2SB - LHR
